Product Description
Electric deck chair
English
English

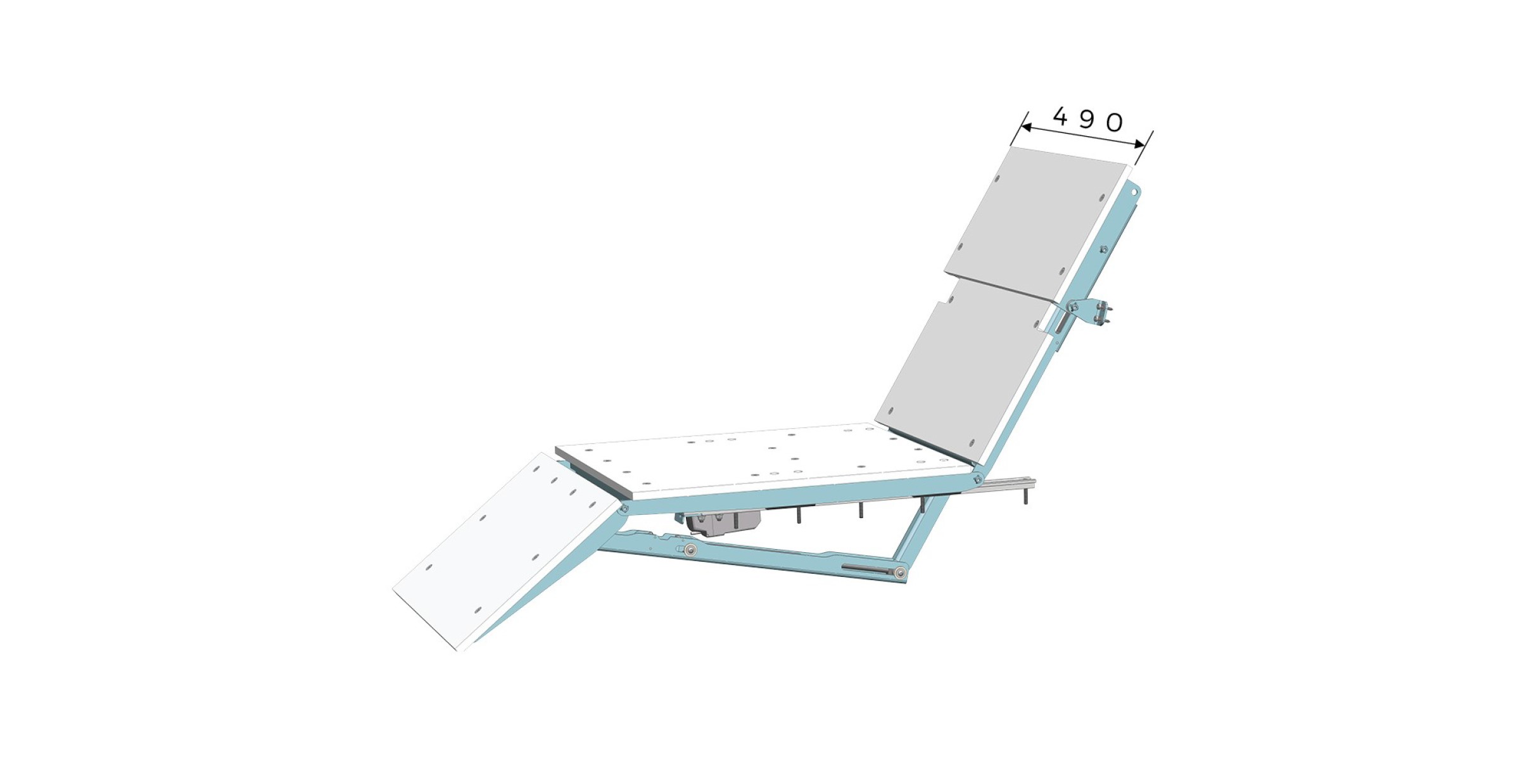

Electric deck chair

Electric deck chair

This system enables to electrically move and store, with or without remote control, one or more chairs

Presentation:


- 316 stainless steel passivated frame.


- Electric actuator.


- Anodized aluminum sliding rail + plastic pads.


- Duration of the movement : Approximately 15s.


- Starboard included (thickness 12.7mm) to receive the cushion seating.


- The cushion seating isn't included.

Mechanical specifications

The actuator stroke is 100 mm. Two sensors, integrated on the actuator, can automatically stop the movement when the deck chair reaches its extreme positions.


Actuator protection factor : IP66.


Actuator tested 500h in salt spray.

Mechanical fuse for a better robustness of the system: If an important force is applied on the supporting legs section while in the lying down position, a safety gas cylinder absorbs this strain independently of the rest of the system, thus preserving the electric actuator and the entire mechanic system.

these dimensions and characteristics are based on our standard but our expertise enables us to respond to specific requests and adapt to your dimensions and yours specifications. Please contact us.
