Platform-lift

Platform-lift

This system enables to electrically move up and down a swim platform.

Presentation:

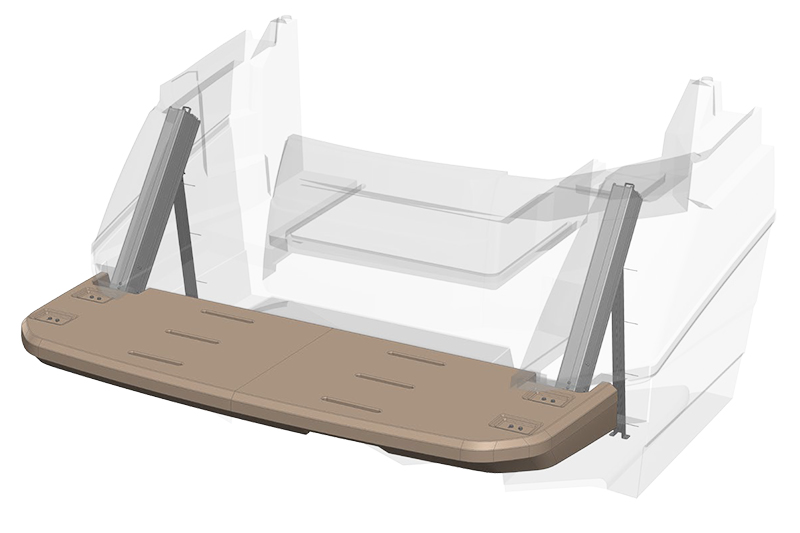

- The platform-lift consists of two synchronized electric telescopic columns and an electronic box for managing the synchronization of both columns.

- Low power consumption.

- Lightweight system.

- In the high position no part of the system is submerged.

In this present document the dimensions and characteristics are based on our standard but our expertise enables us to respond to specific requests and adapt to your dimensions and yours specifications (Especially stroke lengths and more important efforts)

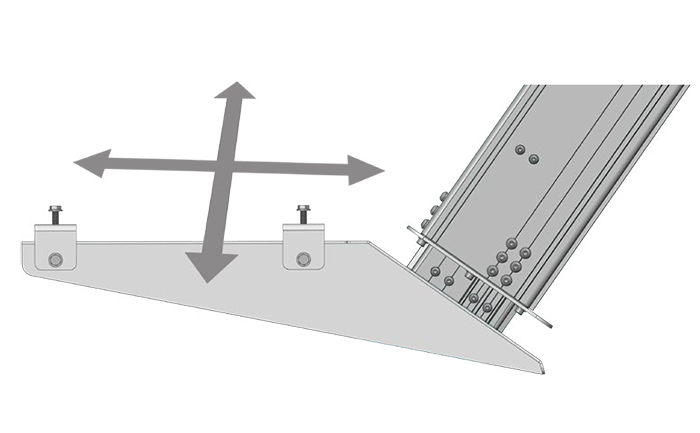

For a perfect trim of the system, it has an adjustable fastening system, longitudinally and vertically.

Safety:

- Buzzer to alert the activation of the movement.

- System control by maintaining a continuous pression on the control button. ( the position of the control switches must be chosen so that the user can see the platform during operation).

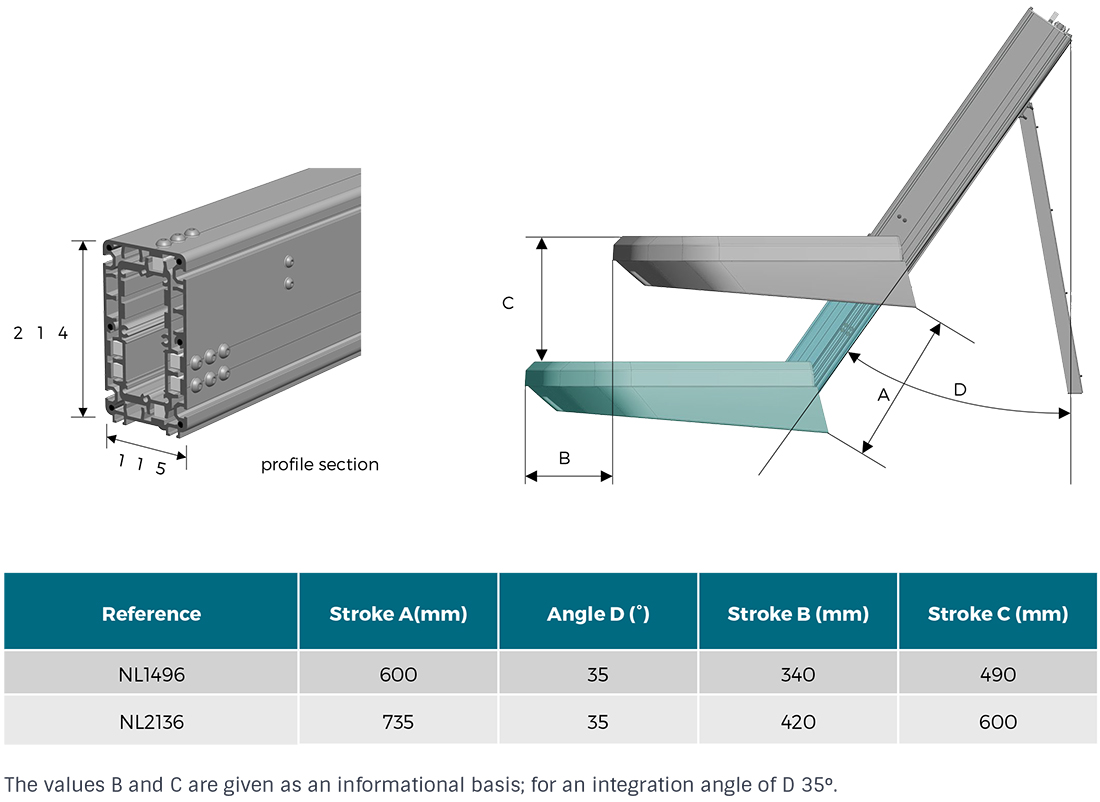

Standard dimensions:

Mechanical specifications:

- Two limit switches can automatically stop the movement when the column reaches one of its extreme positions.

- The duration of the movement on the total stroke length is approximately 40s for a 600mm stroke length.

- The total weight that is supported by the platform-lift consists of a load of 200kg which can be located at any place of the platform and a load of 150kg corresponding to the weight of the platform.

- Motorization protection factor: IP66 in dynamic, IP69 K in static.

- The columns are tested 500h salt spray.

- The tenderlift weight is about 70 kg (weight of the entire function) for a 600mm stroke tender-lift.


these dimensions and characteristics are based on our standard but our expertise enables us to respond to specific requests and adapt to your dimensions and yours specifications. Please contact us.
